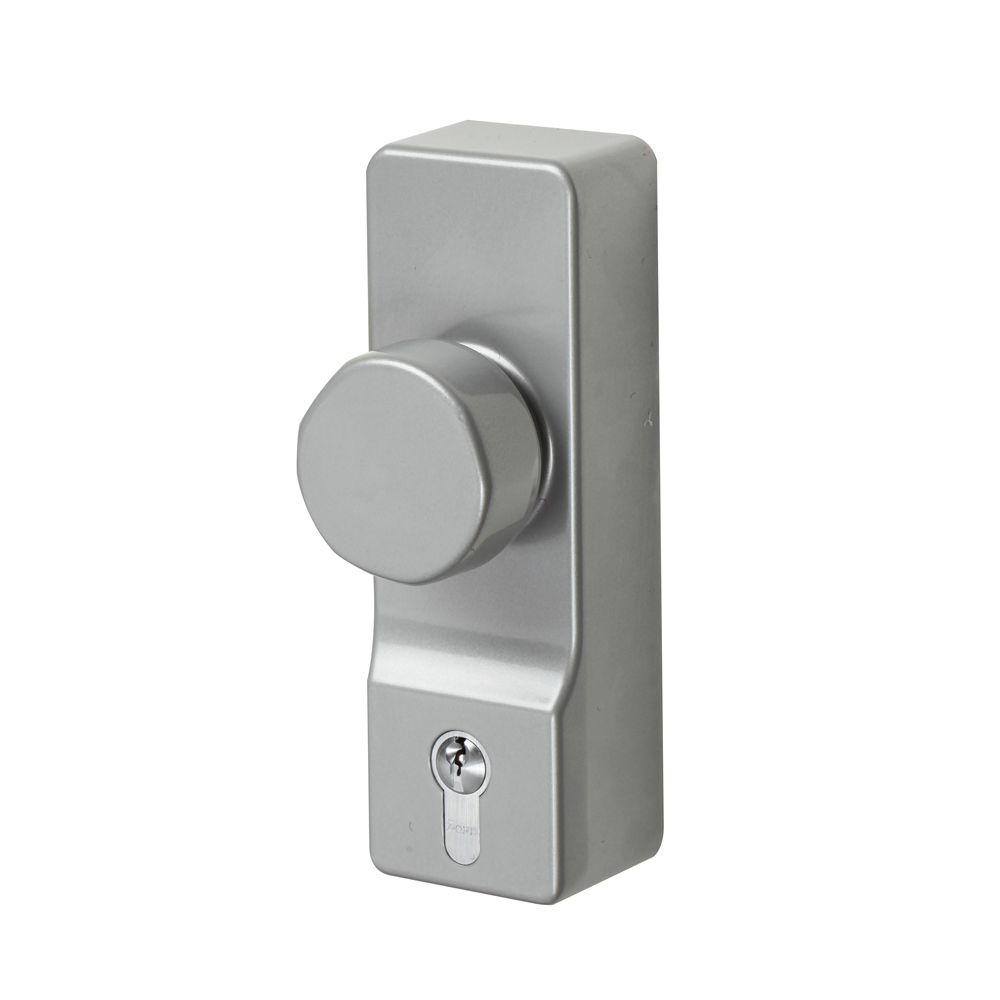

Exidor 302 Outside Access Device with Knob and Euro Cylinder

The Exidor 302 Outside Access Device with knob is an ideal asset for panic hardware ensuring secure access into a building from the exterior through final exit doors when required. Compatible with the 200 & 300 series of panic door hardware including the 294, 296, 297 and 285 push pads and panic bars. The Exidor 302 can be installed on doors upto 45mm in thickness and is complete with fixings and a spindle as well as a euro cylinder lock with 3 keys. This device is CE Marked and Certifire approved for use on timber doors.

Features & Benefits:

• For gaining entry through an escape door
• Compact design of external hardware for use with 200 and 300 Series hardware
• Surface mounted on the outside of the door using concealed machine screws
• Bolt through fixings make it suitable steel or timber doors up to 50mm thick
• Locking the cylinder (supplied with 3 keys) prevents access into the building but will not prevent escape out of the building
• Knob operated outside access device with lock
• Allows for controlled access through fire and emergency escape doors
• Manufactured in the UK
• 10-year manufacturer's warranty
• Supplied non-handed for ease of installation
• Supplied with fixings for wooden doors as standard
• CE marked and Certifire accredited

Specification:

• Unit type: Outside access device
• Activation: Knob handle
• Door type: Single doorset, Rebated double doorset, active leaf, Plain meeting stile double doorset, either leaf
• Door opening: Outward
• Projection: 70mm from door face
• Mounting method: Surface-mounted
• Max door width: 1220mm
• Max door mass: Up to 200kg
• Operation: Rotating the knob retracts the internal bolts/latches. Releasing the knob returns the internal bolts/latches to the rest position
• Cylinder specification for master keying needs: 40mm single euro profile cylinder, with rear face drill and tap fixing
• Finish: Silver
• Suitable for use with: 294, 296, 297 and 285
• CE marked: As an approved accessory to the internal hardware
• Certified 200/300 Series accessory as part of EN 1125 and EN 179
• Suitable for fire doors: Timber FD60, metal FD240
• Certifire approval: Yes – as an accessory to the internal hardware
